$ 1199.99 USD + Free Shipping

J.BAUER Electronics  LaserBee™

Newport 1825-C LPM

+ PM10-19C

USA & Canada Buyers Only

This is a Pre-Owned Lab Laser Power Meter plus one Pre-Owned Coherent PM10-19C

Thermopile with Pristine Sensor surface.

The Laser Power Meter was tested and calibration is in line with our recently calibrated Coherent Field Max II shop Laser Power Meter.


Setup to be used right out of the box.



Specifications:
Power Supply: ................................12VDC Volt DC Adapter

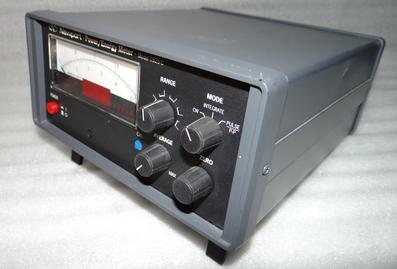

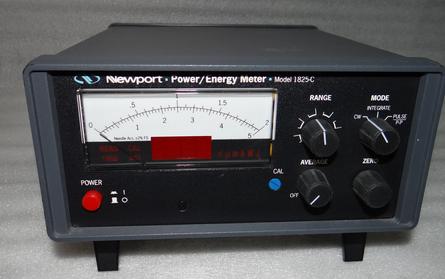

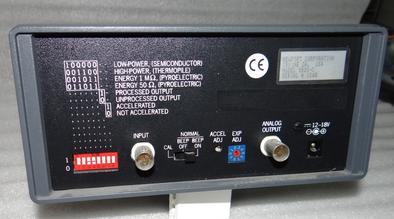

Meter: ............................................. Newport Model 1825-C

Display: ........................................... Both Digital and Analog

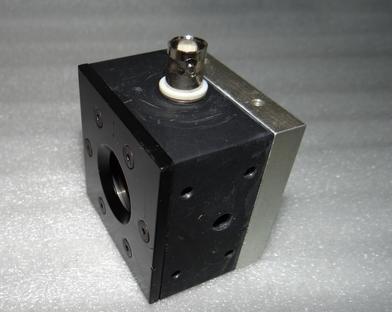

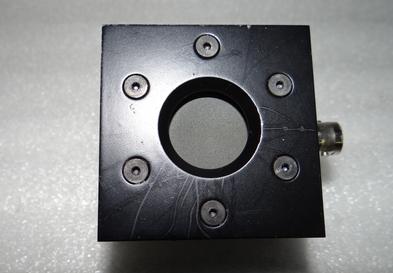

Sensor: ............................................ PM10-19C Thermopile (by Coherent)

Sensor Area: .................................. 19mm dia.
Sensor Cable Length: ................... 60.0"
Thermopile Head Dimensions: ... 2.00" x 2.00" x 1.50"

Spectral Range: .............................. 250nm to 11000nm
Power consumption: ..................... 200 milliamps @ 12VDC
Encl. Total Dimensions: ................ 7.50" x 8.75" x 3.50"


Newport 1825-C Manual URL:

https://www.manualslib.com/manual/1278335/Newport-1825-C.html#product-1825-C

®
