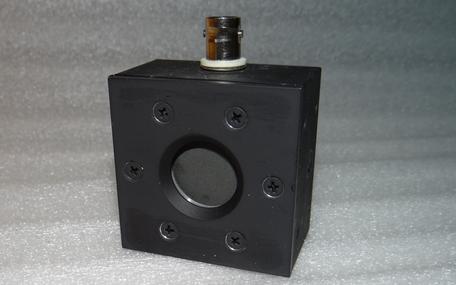

​​This is a Pre-Owned Coherent PM10-19C Thermopile Head. The Sensor Surface has

two small blemishes that do not affect the sensors operation or calibration.

The PM10 Head was tested and calibration is in line with our recently calibrated

Coherent Field Max II shop Laser Power Meter.

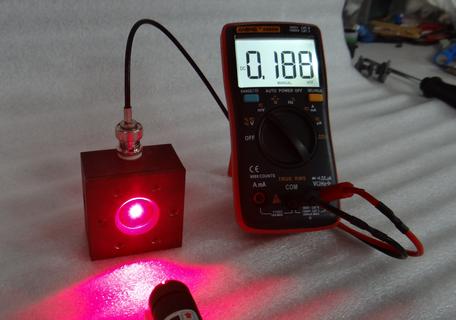

You can use a Digital Multi Meter (DMM) that allows uV readings such as the ANENG

AN8008 pictured. ( 188mW  or 0.188 Watts shows on the meter)


The Laser, Multi Meter and Cable are not included.



Specifications:
Sensor: ............................................ PM10-19C Thermopile (by Coherent)

Sensor Area: .................................. 19mm dia.
Thermopile Head Dimensions: ... 2.00" x 2.00" x 1.50"

Spectral Range: .............................. 250nm to 11000n

Calibration Ratio: ........................... 1uV / 1mW

Compatible DMM........................... ANENG Model AN8008


$ 299.99 USD + Free Shipping

Coherent PM10-19C

Thermopile Head
