Tests most Lasers from 3mW to 3200mW output power. Display resolution in 0.1mW increments to 999.9mW then in 1mW increments to 3200mW.

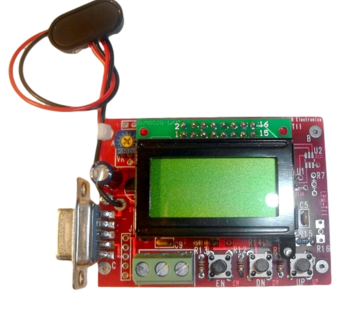

The New 3.2 Watt LaserBee™ II products come pre-assembled and pre-calibrated so you can use it as soon as it arrives whether you choose the Standard (OEM) PCB model or the fully enclosed Deluxe LaserBee™ II.


This 3.2 Watt (3200mW) Laser Power Meter was designed to let the hobbyist technician know the output power of almost any Laser from 3mW up to 3200mW. It does NOT require an optical correction factor chart. It does NOT use a photodiode sensor. The 3.2 WattLaserBee™ II uses an included Thermopile Sensor Head that now has a connector and included removable quick connect Thermopile cable. The 3.2 Watt Laserbee™ II is calibrated against a NIST traceable Coherent FiedmaxII Lab LPM. The 8x2 LCD module comes with a male connector and a female on the PCB so you can make an extension if needed. The LCD Backlight is controlled by the Push Buttons to turn it "ON" or "OFF" if you need to conserve battery power.

The 3.2 WattLaserBee™ II can test most Lasers from 3mW to 3200mW output power in 0.1mW increments to 1000mW then continues in 1mW increments to 3200mW.


Easy to operate... simply attach a single 9 volt battery... or external 9VDC power supply and shine your Laser's Beam onto the Thermopile Sensor and read almost any Wavelength Laser's power output directly on the Backlit LCD Display. The 3.2 Watt LaserBee™ OEM comes with Rubber Feet installed under the PCB.


Comes with clear and easy to understand User Instructions and Drawings as well as our bundled full featured EagleEye™  Windows Data Logging Software and USB drivers.
The new LaserBee™ II products now feature a lower and higher power detection range and resolution.. not to mention Data Logging and Peak Detection.
With the EagleEye™ Data Logging Feature you can see real time Laser Power, Peak Power and Average Power right on the PC screen. You can Data Log the LaserBee™ II's output using the included EagleEye™ Data Logging PC Interface Software. You can even Record and/or Graph your data on screen and/or print it out to a Printer for a hard copy that you can include with your Tested Lasers.


The 3.2W LaserBee™ II OEM comes standard with the EagleEye™ Data Logging feature and Peak detection.

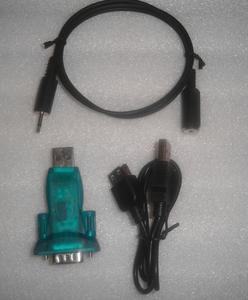

For USB Ports an RS232 Conveter Cable is supplied with the LaserBee™ II products, If you do not have a Serial Port available on your PC, the supplied USB to RS232 Converter Cable can be used to communicate with your LaserBee™ II products. The PCB also has rubber feet to lift it off your work surface.


Specifications
Power Supply: ................................. 7-12 Volts DC (9Volt Battery or 9Volt DC Adapter recommended)
Sensor: ............................................. Thermopile (by J.BAUER Electronics)
only one sensor is supplied
Sensor Area: ..................................  8mm x 8mm (64 square mm)
Sensor Cable Length: ................... 18.0"
Thermopile Head Dimensions: .. 1.65" x 1.50" x 1.00"
Power Range: .................................. 3mW to 3200mW

Spectral Range:............................... 300nm to 1500nm

Response Time (100%): ............... 10-12 Seconds

Response Time (90%): .................. 3-4 Seconds
Display Resolultion: ....................... 0.1mW to 1000mW... 1mW increments to 3200mW
Power consumption: ..................... 4 milliamps @ 9vdc (without LCD Backlight)
Power consumption: ..................... 17 milliamps @ 9vdc (with Green LCD Backlight)
Power consumption: ..................... 19 milliamps @ 9vdc (with Blue LCD Backlight)
Total Dimensions: .......................... 2.55" x 1.90" x 0.95" (Including LCD)
EagleEye™ Software: .................... on CD
User Instructions: .......................... on CD

International Buyers Only

USA & Canada Buyers Only

®
