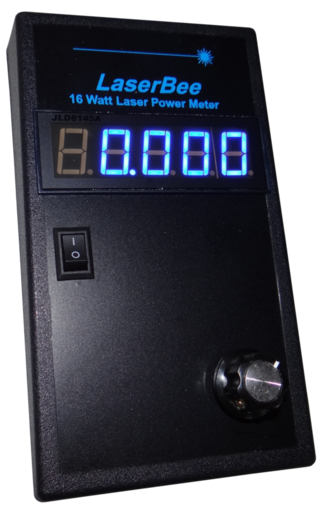

J.BAUER Electronics LaserBee™
Copyright © 2008-2024 J.BAUER Electronics All Rights Reserved.
International Buyers Only
Tests Lasers from 1mW to 16000mW output power. Display resolution in 1mW increments to 16000mW.
Note:-
The New 16W LaserBee™ is a Limited Edition LaserBee Laser Power Meter. Only a few will be offered on this site.
The 16 Watt LaserBee™ comes pre-assembled and pre-calibrated so you can use it as soon as it arrives.
This LaserBee™ power meter features a newly calibrated by OPHIR Pristine Thermopile Radial Sensor. You can see the OPHIR specifications of this sensor in the PDF on the Supplied User Instructions USB Drive
The 16Watt LaserBee™ also features a zeroing control to zero out any test area variations before taking a new power reading.
Easy to operate... simply plug in the included external 7.5VDC power supply and shine your Laser's Beam onto the pristine OPHIR Thermopile Sensor and read almost any Wavelength Laser's power output directly on the large 4-1/2 digit LED Display.
The 16W LaserBee™ is professionally assembled, tested, calibrated and housed in a high quality textured and sloped plastic enclosure. Comes with clear and easy to understand User Instructions and Drawings.
An Serial Type DB9 Connector is supplied to output the raw calibrated output of the OPHIR Thermopile Head that can be used to capture Power Data levels by an external Data Logging Device.
Specifications
Power Supply: ................................. 7.5 Volt DC Adapter
Sensor: ............................................. Thermopile (by OPHIR)
Sensor Area: ................................... 12mm dia.
Sensor Cable Length: .................... 36.0"
Thermopile Head Dimensions: ... 1.50" x 1.50" x 1.35"
Power Range: ................................. 1mW to 16000mW
Spectral Range: .............................. 190nm to 10600nm
Response Time (100%): ................ 1-2 Seconds
Response Time (90%): .................. 0.8 Seconds
Display Resolultion: ...................... 1mW to 16000mW
Power consumption: .................... 170 milliamps @ 7.5 VDC
Encl. Total Dimensions: ................ 5.60" x 3.50" x 1.50"
User Instructions: .......................... on USB Drive
